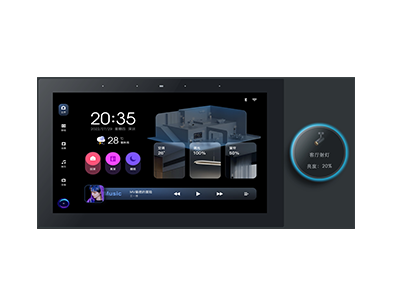

Taitong F7 7" Multi-Function Control Panel
Model F7
Works withTuyaMi HomeTmall GenieMatterKnx
7-inch Tuya smart home control panel with music playback
Specifications
| Expansion | Distance sensor / interface available for custom control panels |
|---|---|
| System | Android 8.1, RAM 1GB, ROM 8GB |
| Main Display | 7-inch display, 1024×600, capacitive touch screen |
| Built-in Speaker | 1W |
| Rotary Knob | 1.28-inch display for volume, temperature, brightness and more |
| Audio | 1 input; 1 output |
| ITO Platform | Tuya ZigBee / Tmall |
| Speaker Output | 2×(10-25)W digital amplifier |
| Power Supply | 90V-240V |
| Mounting | Single 86-type back box |
| RS-485 Port | 1 output |
| Weight | 1.1KG |
| Bluetooth | Receive / transmit (for Bluetooth speakers) |
| Dimensions | 235×111.5×11.5MM |
| External Ports | TF card, USB port |
