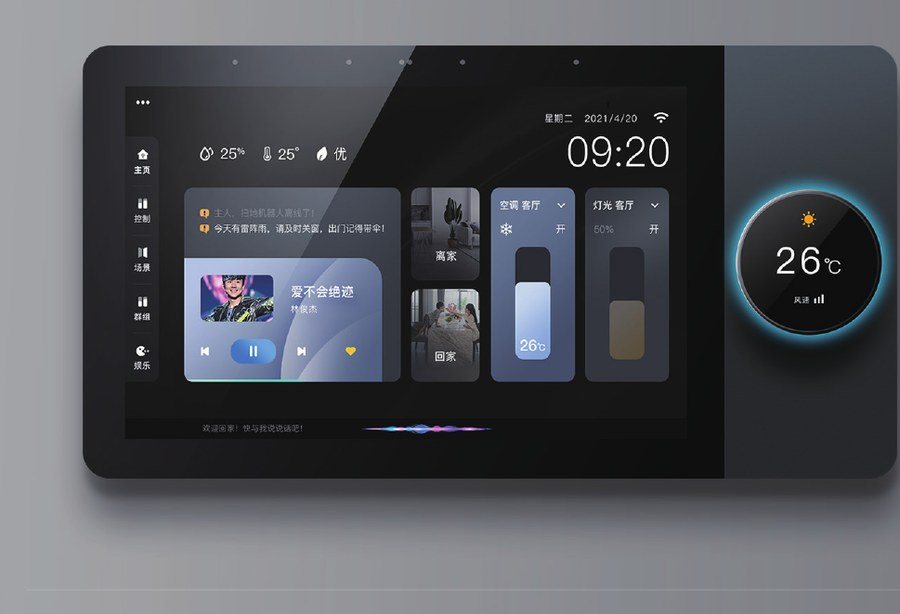

Taitong F8 8" Multi-Function Control Panel
Model F8
Works withTuyaMi HomeTmall GenieMatterKnx
8-inch display, 1280×800, capacitive touch screen · Android 8.1, RAM 2G, ROM 8G
Specifications
| System | Android 8.1, RAM 2GB, ROM 8GB |
|---|---|
| Speaker Output | 2×(10-25)W digital amplifier |
| Main Display | 8-inch display, 1280×800, capacitive touch screen |
| External Ports | TF card, USB port |
| Expansion | Distance sensor / interface available for custom control panels |
| Rotary Knob | 1.28-inch display for volume, temperature, brightness and more |
| Back Box | Double / single 86 back box, expandable with background music / door intercom |
| ITO Platform | Tuya ZigBee / Tmall |
| Power Supply | 90V-240V |
| Audio | 1 input; 1 output |
| Lighting Control | 2 relays, less than 200W |
| Mounting | Double / single 86 back box |
| RS-485 Port | 1 output |
| Weight | 1.5KG |
| Bluetooth | Receive / transmit (for Bluetooth speakers) |
| Dimensions | 185×125×10.5MM |
| Built-in Speaker | 1×2W |
