Taitong B3 Series Smart Panel
An ultra-slim smart switch with a soft-touch glass face. A built-in Bluetooth chip provides single-device, group and scene control without a gateway. It runs on 100–240V wide-range input and has 4 relay outputs. Available in 4- and 6-key layouts, with engraving and adjustable backlight brightness. Supports tap, click and long-press operation and linkage with lighting, curtains and other devices in the system.
Specifications
| Product Name | B3 Series Smart Panel |
|---|---|
| Model | IN-BLE-B3-S4/S6 A3 |
| Wireless Type | Bluetooth mesh |
| Input Voltage | 100 - 240 V |
| Frequency Range | 50/60Hz |
| Input Current | 16A |
| Power | Resistive load 1000W (tungsten, incandescent, halogen); inductive/capacitive load 500W (LED, fluorescent, CFL) |
| Operating Temperature | -20~60℃ |
| Operating Humidity | ≤80% |
| Overcurrent Protection | 1.1A |
| Zero-Cross Detection | Yes |
| Over-Temperature Protection | 150℃ |
| Short-Circuit Protection | Yes |
| Dielectric Strength | 265VAC |
| Safety Standards | CQC |

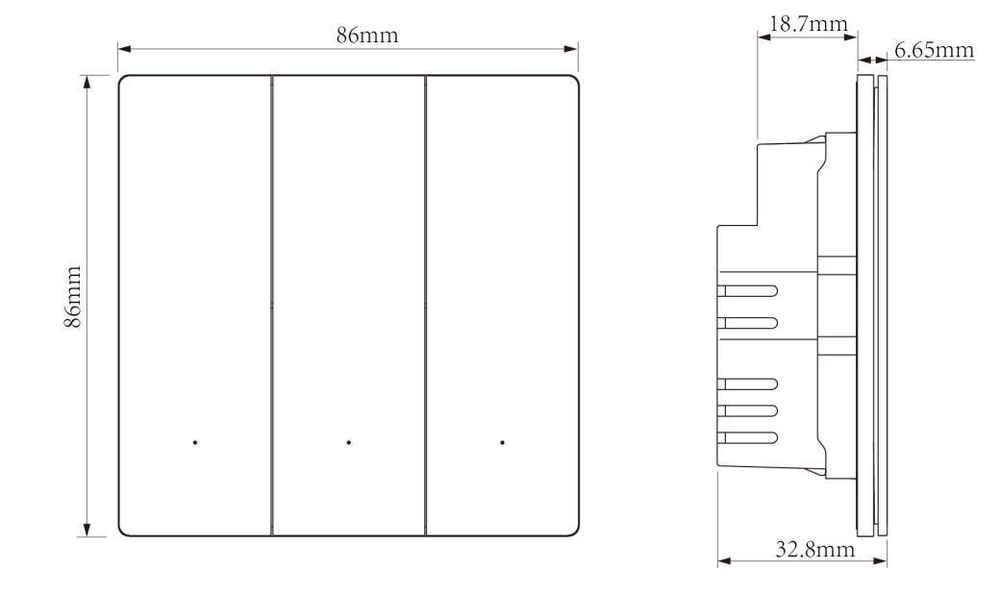

| Dimensions | 86*86*32.8mm |
