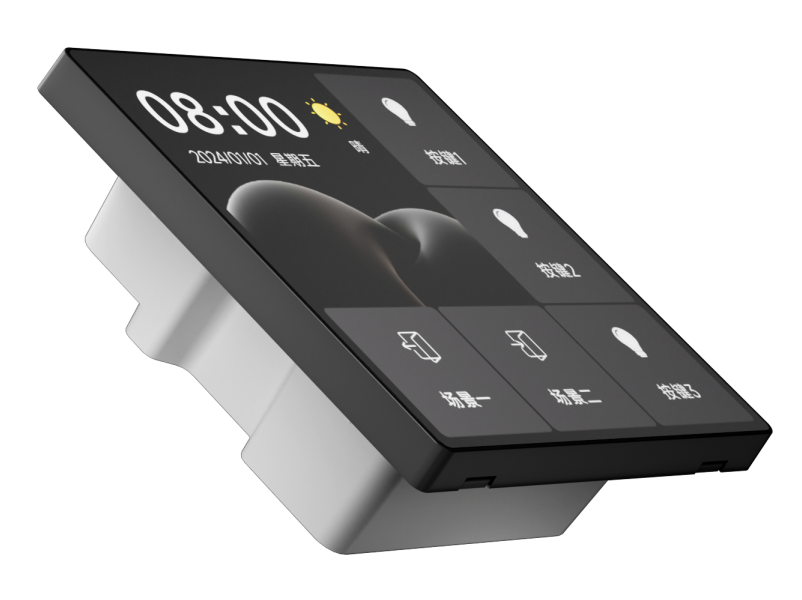

Taitong Smart LCD Touch Screen
Model IN-BLE-X1M
An 86-type in-wall touch display with an AGC toughened-glass face, polished and finished with an anti-fingerprint coating. A built-in Bluetooth chip provides local single-device, group and scene control. Powered by 220V, it supports app control and linkage with lighting, curtains and other devices in the system.
Specifications
| Product Name | Smart LCD touch screen |
|---|---|
| Model | IN-BLE-X1M |

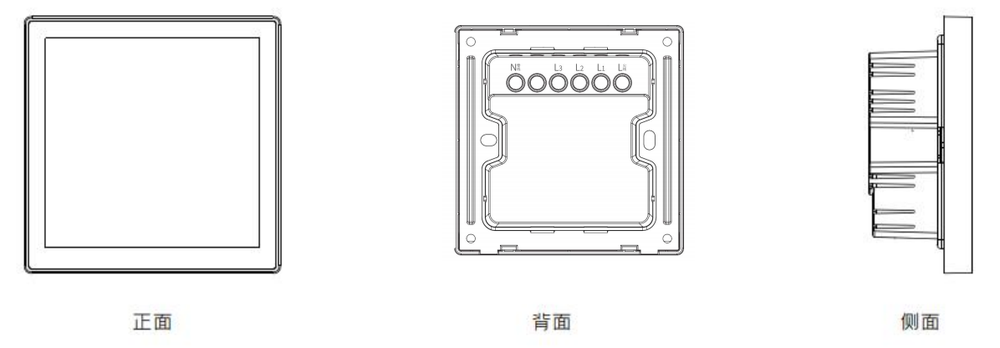

| General | Rated voltage 220V AC/50Hz; relay 5V, 100,000 operations; 3 load channels; load type incandescent ≤1000W per channel, LED ≤300W per channel; operating -10℃ to 45℃; humidity RH 0–95%, non-condensing; storage 0 to +40℃; IP20; dimensions 86×86×31.7mm, in-wall depth 24.7mm, protrusion 7mm |
