Taitong 12W RGBCW LED Driver
For commercial and specialist applications. Built-in algorithms bring out the full capability of the light source: significantly better colour rendering, precise black-body-line tracking and a close match to natural light. Communication is over Bluetooth — no signal wiring or complex addressing — so configuration is straightforward. The device connects directly to the phone app or works alongside other Bluetooth devices, supporting single-device, group and scene-cluster control. This driver matches the Zhonghao RGBCW 1814 and 1916 light-source series by default. With third-party luminaires, make sure the driver output voltage and current match — an ordinary light source only gives mixed output and cannot deliver the full-spectrum effect. Getting the best full-spectrum result requires secondary optimisation for that specific light source.
Specifications
| Model | IN-A5H-GEN-H2 |
|---|---|
| Output Parameters | Output voltage 30–40V; operating current C/W 0–300mA, RGB 0–150mA; load power 0–12W; dimming 1%–100%; flicker-free; PWM 1–12kHz; ripple & noise 1V |
| Input Parameters | Input current 0.16A @176V full load; power factor >0.5 @220V full load; inrush 30A; leakage 0.5mA |
| Environmental Parameters | Operating -20℃ to 40℃; humidity 10%–95%; storage -20℃ to 60℃ / 10%–95% RH; vibration >GB/T 4857.23 |
| Protection | Over-voltage: yes; overload: yes; over-temperature: yes; short-circuit: yes |
| Safety & EMC | Dielectric strength 3750V / 1 min; safety GB19510, CCC; EMC emission/immunity GB17743; flicker test YEN61000 |

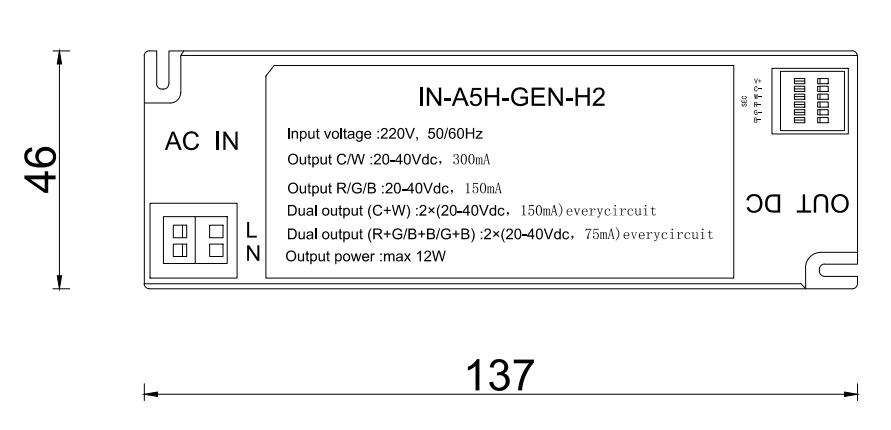

| Other | Dimensions 137×46×27mm, weight 97.5g |
