Taitong Dual-White 12W LED Driver (IN-BLE-DR12D)
For domestic and commercial installations that need scene control and independent luminaire control. Communication is over Bluetooth — no signal wiring or complex addressing — so configuration is straightforward. The device connects directly to the phone app or works alongside other Bluetooth devices, supporting single-device, group and scene-cluster control. Third-party light sources are supported — when using them, make sure the driver output voltage and current match the luminaire.
Specifications
| Product Name | Dual-white 12W LED driver |
|---|---|
| Model | IN-BLE-DR12D |
| Output Parameters | Output voltage range 30–40V; operating current 0–300mA; load power 0–12W; dimming 1%–100%; flicker-free |
| Input Parameters | Input current 0.16A @176V full load; power factor >0.5 @220V full load; inrush 30A; leakage 700µA |
| Environmental Parameters | Operating -20℃ to 40℃; humidity 10%–95%; storage -20℃ to 60℃ / 10%–95% RH; vibration >GB/T 4857.23 |
| Protection | Over-voltage: yes; overload: yes; over-temperature: yes; short-circuit: yes |
| Safety & EMC | Dielectric strength 3750V / 1 min; safety GB19510, CCC; EMC emission/immunity GB17743; flicker test YEN61000 |

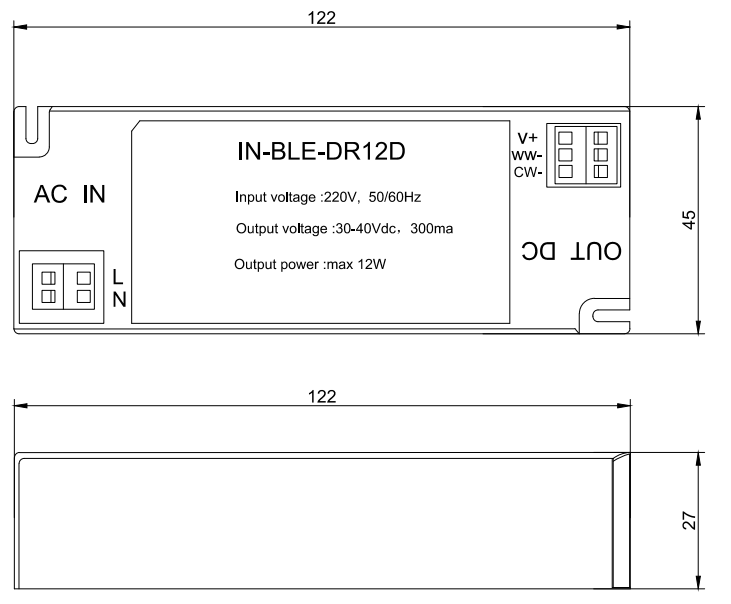

| Other | Dimensions 122×45×27mm, weight 101.7g |
