Taitong Dual-White 12W LED Driver (IN-BLE-DR12E)
For domestic and commercial installations that need scene control and independent luminaire control. Communication is over Bluetooth — no signal wiring or complex addressing — so configuration is straightforward. The device connects directly to the phone app or works alongside other Bluetooth devices, supporting single-device, group and scene-cluster control. Third-party light sources are supported — when using them, make sure the driver output voltage and current match the luminaire.
Specifications
| Product Name | Dual-white 12W LED driver |
|---|---|
| Model | IN-BLE-DR12E |
| Output Parameters | Output voltage range 24–38V; output current 0.15–0.3A; standby power 0.058W; flicker visibility 0.4; stroboscopic effect 1; accuracy 5%; dimming 1%–100% |
| Input Parameters | Input current 0.14A; power factor 0.88; efficiency 84%; inrush current 1kV |
| Environmental Parameters | Operating -20℃ to 45℃; humidity 10%–85%; storage -20℃ to 65℃ / 20%–90% RH; waterproof rating IP20 |
| Reliability Requirements | Dielectric strength primary-to-secondary 3750Vac / 5mA / 60s; leakage current max 0.25mA at 240Vac/50Hz; insulation resistance min 100MΩ tested at 500Vdc between primary and secondary; burn-in 100% at full load for at least 2 hours; rated life 3 years (30,000 hours) at 45℃ ambient; MTBF at least 50,000 hours at 25℃ with rated input and full load |
| Safety & EMC | CCC PASS GB 17625.1-2022 PASS GB/T 17743-2021 PASS GB/T 19510.1-2023 PASS GB/T 19510.213-2023 PASS |

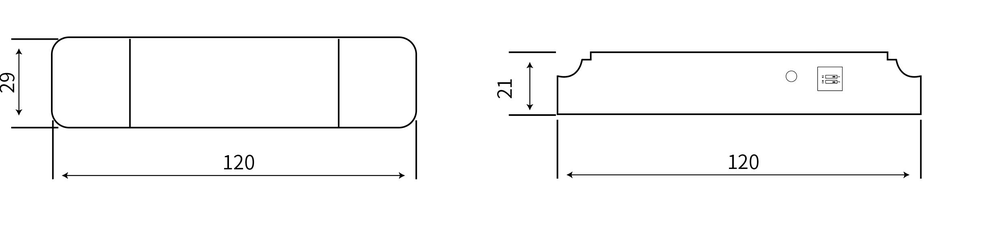

| Other | Dimensions 120 × 29 × 21mm |
