Taitong DR40S LED Driver
For domestic and commercial installations that need scene control and independent luminaire control. The driver is compact, dims smoothly and supports deep dimming with fine step values. Its twin-cable output suits small, low-voltage luminaires. Communication is over Bluetooth — no signal wiring or complex addressing — so configuration is straightforward. The device connects directly to the phone app or works alongside other Bluetooth devices, supporting single-device, group and scene-cluster control. Third-party light sources are supported — when using them, make sure the driver output voltage and current match the luminaire.
Specifications
| Product Name | DR40S LED driver |
|---|---|
| Model | IN-BLE-DR40S |
| Features | Output: constant current; dimming: Bluetooth dimming and colour tuning; dimming range 1%–100%; IP20; insulation class ClassⅡ; efficiency 85% |
| Input Parameters | Input voltage range 110–240V; input frequency 50/60Hz; power factor (115Vac) >0.9, NA; power factor (230Vac) >0.9 ×6; total harmonic distortion (115Vac) <10%, NA; total harmonic distortion (230Vac) <10% ×6; input current (115Vac) 0.33A, NA; input current (230Vac) 0.17A / 0.18A / 0.19A / 0.20A / 0.21A / 0.22A; efficiency (typical @115Vac, full load) 83%, NA; efficiency (typical @230Vac, full load) 83% / 84% / 85% / 86% / 87% / 88%; inrush current … Values are per model — see the manufacturer datasheet for the full comparison table. |
| Output Parameters | Load voltage (Vdc): 20–42 / 20–40 (per model); output current (mA): 750 / 800 / 850 / 900 / 950 / 1000 (per model); max no-load voltage 50Vdc; … see the manufacturer datasheet for the full comparison table. |
| Protection Features | Over-voltage, short-circuit and overload protection — all auto-recovery |
| Environment | Operating ta: -20°C to 50°C, tc: 85℃; humidity 10%–90% RH, non-condensing; dielectric strength I/P-O/P 3750V |

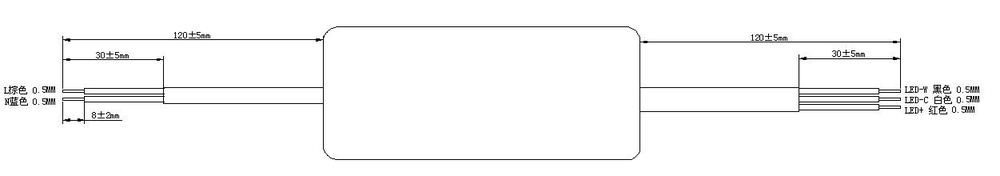

| Other | Dimensions 120 × 45 × 28.5mm |
