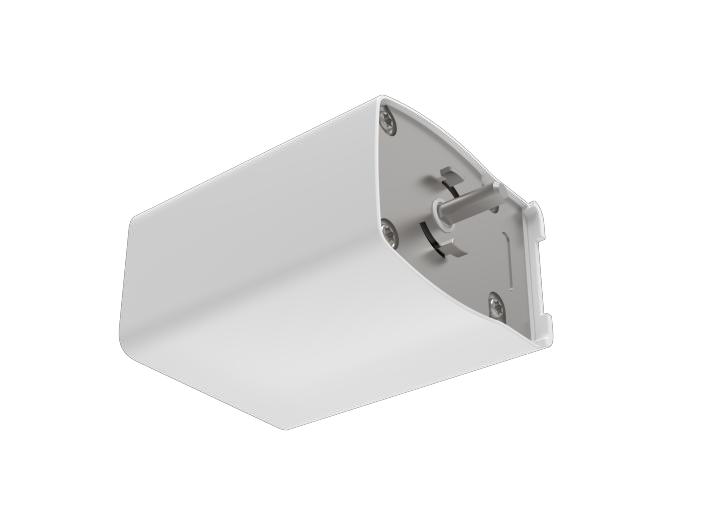

Taitong Mini Curtain Motor
For motors in draw-curtain (open/close) systems. It provides electronic travel limits, a built-in receiver with obstacle stop, gentle-touch start, manual operation during a power cut, safety extra-low voltage and quiet running. Over the Bluetooth mesh the motor supports open, close, stop and percentage travel control, and works with hand-held and wall-mounted remotes. Combined with the rest of the range it integrates fully with lighting, scene panels and sensors.
Specifications
| Product Name | Mini draw-curtain motor |
|---|---|
| Model | IN-BLE-DT82 mini |
| Input Voltage | 100-240V,50Hz/60Hz |
| No-Load Current | 0.07A |
| Rated Current | ≤0.3A |
| Rated Power | ≤36W |
| Rated Torque | 1.3 N·m |
| No-Load Speed | 75 rpm ±10% (adjustable 75/85/105 rpm) |
| Load Speed | ≥35 rpm (at 1.3N·m load) |
| Duty Cycle | S2 3min |
| Thermal Class | F |
| IP Rating | IP40 |
| Maximum Load | 60kg |
| Supported Length | 6m |
| Motor Dimensions | 77*52*105mm |
