Taitong Bluetooth Roller-Blind Motor (IN-BLE-TP25)

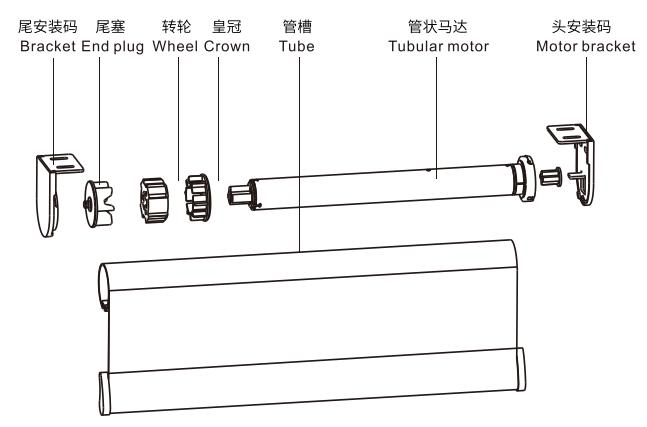

A Bluetooth roller-blind motor with a built-in Bluetooth chip — no gateway, running locally. It suits roller, venetian, Shangri-La and honeycomb blinds, and offers electronic travel limits, a built-in receiver with motorised control, and quiet operation. Over the Bluetooth mesh it supports raise, lower, stop and percentage travel control. Combined with the rest of the range it integrates fully with lighting, scene panels and sensors.
Specifications
| Product Name | Bluetooth roller-blind motor |
|---|---|
| Model | IN-BLE-TP25 |
| Input Voltage | 100-240V AC |
| Rated Frequency | 50/60 Hz |
| Rated Power | 20W |
| No-Load Current | ≤0.07A |
| Rated Current | ≤0.15A |
| Rated Torque | 1.2N.m |
| No-Load Speed | 18 / 22 (default) / 26 rpm ±10% |
| Load Speed | ≥17 RPM ±10% (default) |
| IP Rating | IP40 |
| Duty Cycle | S3 50% |
| Theoretical Load | 5kg |

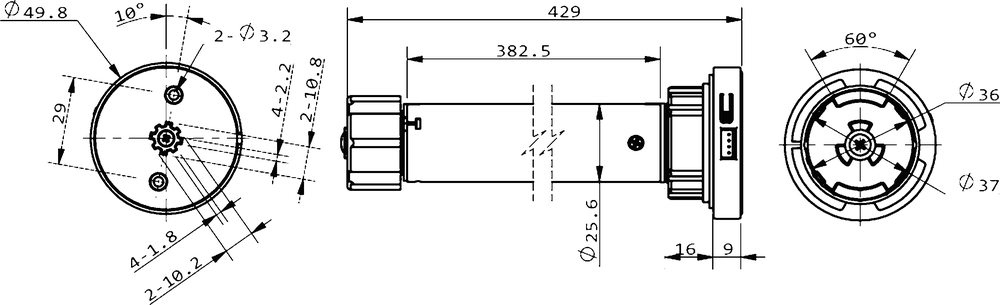

| Dimensions | Length 429mm, tube diameter 25.6mm |
