Taitong Jiaomu Series Custom Scene Panel
A multi-function scene panel with a built-in Bluetooth chip, providing single-device, multi-device, group and scene control within the Bluetooth mesh without a gateway, with 4 relay outputs for switching individual loads. An 8-key panel for scene switching, with backlighting and linkage to lighting, curtains and other devices in the system.
Specifications
| Product Name | Jiaomu Series scene panel |
|---|---|
| Model | IN-BLE-JM-P8L4 |
| Output Parameters | Output voltage Vout 220V; max per circuit 800W (resistive load); max per circuit 200W (LED load) |
| Input Parameters | Input voltage 110–240V; frequency 50/60Hz; input current 10mA; surge withstand 1kV |
| Environmental Parameters | Operating -10℃ to +45℃; humidity 5%–85%; storage -40℃ to +80℃ (non-crystallising) |
| Safety & EMC | Dielectric strength 3000V / 1 min; safety IEC60950/EN60950/UL60950; EMC emission n.a. |

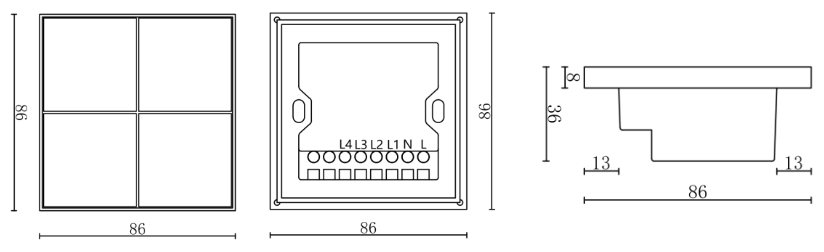

| Other | Dimensions 86 × 86 × 36mm |
