Taitong Loujin Smart Scene Panel
A multi-function scene panel with a built-in Bluetooth chip, providing single-device, multi-device, group and scene control within the Bluetooth mesh without a gateway. Powered by 220V with 4 relay outputs for switching individual loads. Available in 4-, 5- and 6-key versions with backlit metal keys that can be engraved, and adjustable backlight brightness and RGB colour. The mains (AC) panel can control lighting colour temperature and brightness, curtain open/stop/close and scenes, and can run circadian schedules with the lighting. Keys 1–4 control the four loads behind the panel by default.
Specifications
| Product Name | Loujin smart scene panel |
|---|---|
| Model | IN-BLE-L4R |

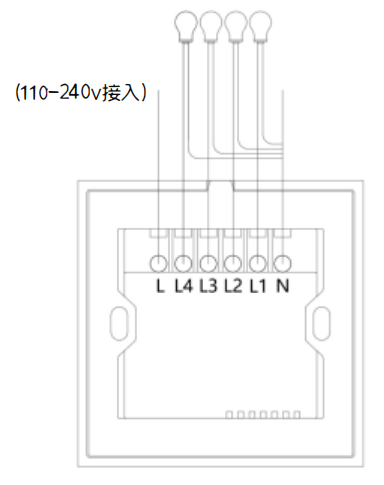

| Basic Parameters | Rated voltage Vout 220V; wireless: Bluetooth mesh; input 110–240V, 50Hz; resistive load max 2200W; capacitive load max 200W; 4 relay outputs |
| Environment | Operating -5℃ to 45℃; humidity ≤90% RH, non-condensing; storage -20℃ to 60℃; IP20 |
| Reliability Parameters | Key life 50,000 cycles; burst 2kV; ESD contact ±6kV, air ±8kV; surge differential ±2kV, common ±2kV |

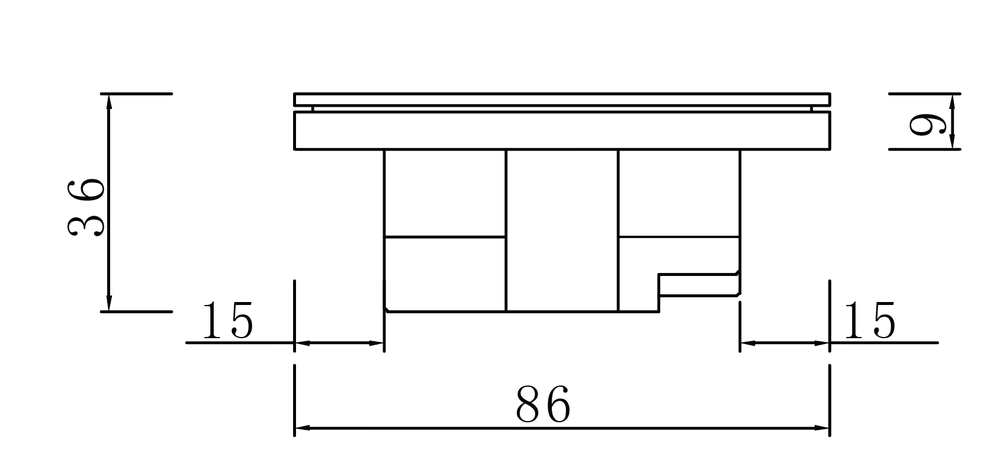

| Other | Dimensions 86 × 86 × 36mm |
