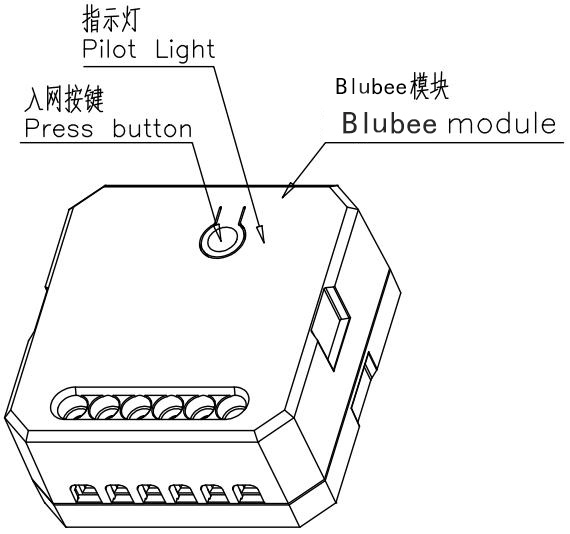

Taitong IN-BLE-PS2 Smart Switch Module
IN-BLE-PS2 is a smart wireless switch module for switching device power. Its built-in Bluetooth mesh module provides two mains lighting outputs and two key-switch inputs; it reads the key state of an external momentary (rocker) panel to control the load. It supports app remote control and scene linkage, and voice control through mainstream speakers such as Xiao Ai and Xiaodu. It suits retrofit work in smart buildings, hotels, offices and homes.
Specifications
| Product Name | Smart switch module |
|---|---|
| Model | IN-BLE-PS2 |
| Wireless Type | Bluetooth mesh |
| Input Parameters | Rated voltage 220V AC; surge 1kV (L/N, EN61000-4-5); standby power ≤0.2W @220V AC |
| Output Parameters | Mode ON/OFF; max load 300W LED / 600W incandescent at 110V AC, 600W LED / 1200W incandescent at 240V AC; total load max 2400W (all channels); load inrush 50A measured at 50% Ipeak, twidth 200µs @230VAC, cold start at full load |
| Operating Environment | Mounting: built-in 86 panel or DIN rail; operating 0℃ to +50℃; storage -25℃ to +80℃ |
| Certifications | Certification: CE; RoHS compliant; IP20 |
