Taitong A Series Single-Live-Wire Control Panel
A multi-function scene panel with a built-in Bluetooth chip. It provides single-device, multi-device, group and scene control throughout the home without a gateway. It uses single-live-wire power, making it well suited to retrofit and renovation work, and offers 2 or 3 relay outputs for switching individual loads. Available in 2-key and 3-key versions with status lights, supporting tap and long-press operation and linkage with lighting, curtains and other devices in the system.
Specifications
| Product Name | A1 Series Classic Panel |
|---|---|
| Model | IN-BLE-SPS2/S3 |

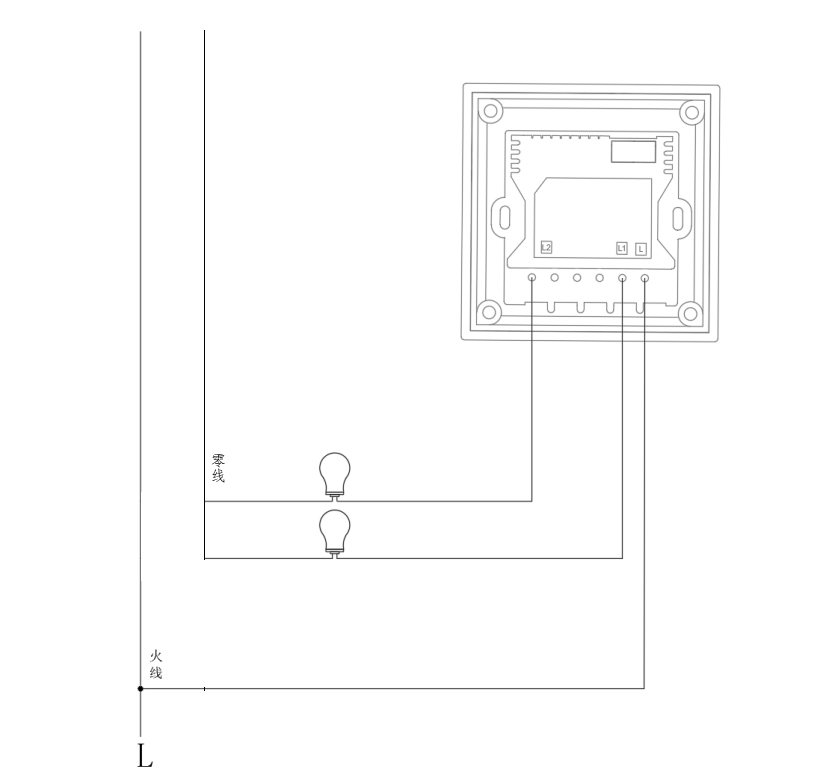

| Wiring Method | Live wire |
| Output Parameters | Output voltage Vout 220V; max per circuit 800W (resistive load); max per circuit 200W (LED load) |
| Input Parameters | Input voltage 220–240V; frequency 50/60Hz; input current 10A; surge withstand 1kV |
| Environmental Parameters | Operating -10℃ to +45℃; humidity 5%–85%; storage -40℃ to +80℃ (non-crystallising) |
| Safety & EMC | Dielectric strength 3000V / 1 min; safety IEC60950/EN60950/UL60950; EMC emission n.a. |

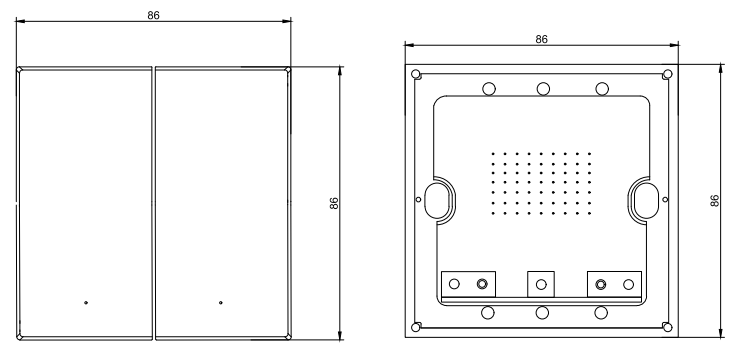

| Other | Packaging 86 × 86 × 40mm |
