Taitong 160W Dual-White Constant-Voltage Driver
A combined input/output power supply for 24V low-voltage constant-voltage LED strips. Over Bluetooth it controls dual-white strips — on/off, brightness and colour temperature — and also supports soft start, brightness-level and fade-time adjustment, warm-white blending, circadian schedules, and single-device, group and scene control. With its built-in Bluetooth mesh protocol it forms a local network with no gateway or host, covers all the device features of a DALI lighting system (direct DALI connection is not supported), and can be mixed with scene panels, sensors and curtain motors in the same system.
Specifications
| Product Name | 160W dual-white constant-voltage driver |
|---|---|
| Model | IN-BLE-DRH160-024 |
| Output Parameters | Output C+W: constant voltage DC24V; output current 6.7A max; load power 0–12W; dimming 1%–100%; flicker-free; PWM 1–12kHz; ripple & noise 1V |
| Input Parameters | Input current 1A; power factor >0.9 @220V full load; inrush ≤80A/2.0ms (230VAC, full load); surge L-N 1kV, L/N-G 2kV |
| Environmental Parameters | Operating -10℃ to 45℃; humidity 20%–95%; storage -20°C to 60°C, 10–95% RH; vibration MIL-STD-810D |
| Protection | Over-voltage: yes; overload: yes; over-temperature: yes; short-circuit: yes |
| Safety & EMC | Dielectric strength input-to-output 3750V; safety GB19510, CCC; EMC emission EN55015, EN61000-3-2; EMC immunity EN… (per-model values — see the manufacturer datasheet). |

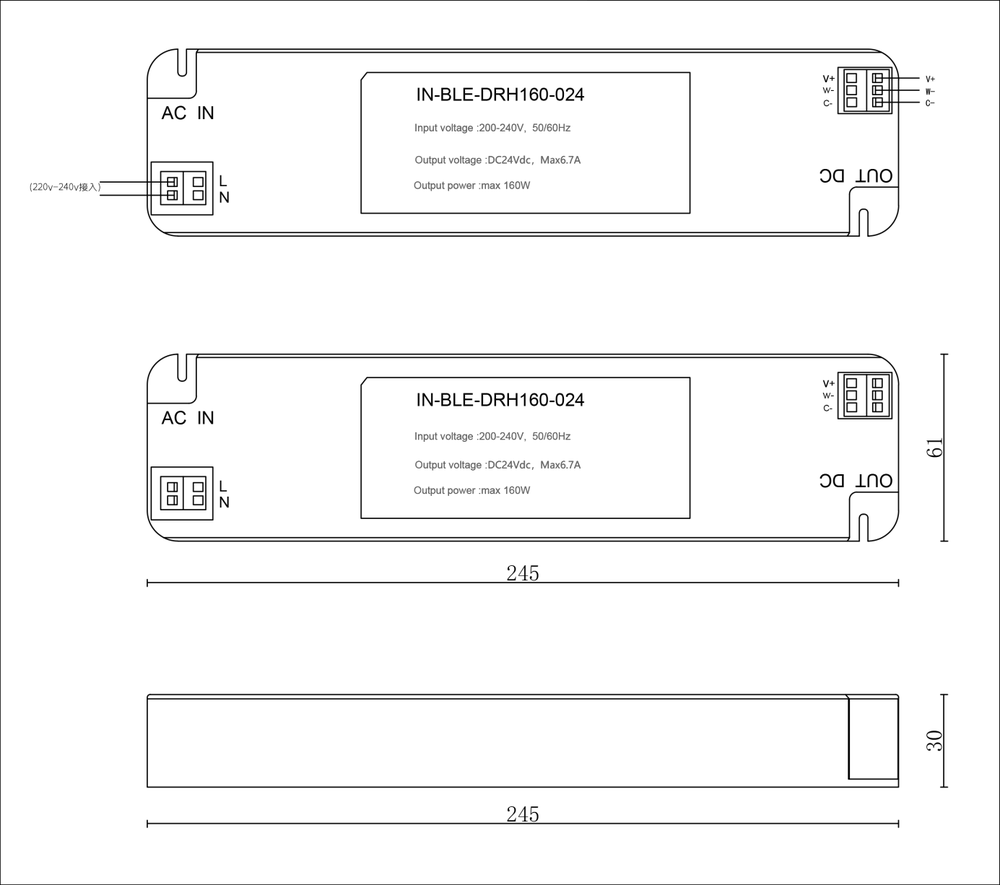

| Other | Dimensions 245×61×30mm; packaging 250×62×38mm |
