Taitong 5-Channel LED Strip Controller
For low-voltage constant-voltage LED strips. It controls every common strip type over Bluetooth — single-white, dual-white, RGB, RGBW and 5-in-1 RGBCW — including on/off, brightness and colour temperature. It also supports soft start, brightness-level and fade-time adjustment, RGB mixing and warm-white blending, circadian schedules, and single-device, group and scene control. With its built-in Bluetooth mesh protocol it forms a local network with no gateway or host, covers all the device features of a DALI lighting system (direct DALI connection is not supported), and can be mixed with scene panels, sensors and curtain motors in the same system.
Specifications
| Product Name | 5-channel LED strip controller |
|---|---|
| Model | IN-BLE-PWM5 |
| Wireless Type | Bluetooth mesh communication |
| Input Voltage / Current | 12/24V, <8A |
| Operating Voltage | 12/24V |
| Operating Current Range | 0–5A (total output) |
| Load Power | ≤120W (24V input) |
| Flicker Level | Flicker-free |
| Dimming Range | 1% - 100% |
| Low-frequency current ripple (<120Hz) | n.a. |
| Colour Temperature Range | 2700K-6500k |
| Operating Temperature | -20~ +50℃ |
| Operating Humidity | 5% ~ 85% |
| Storage Temperature / Humidity | -40 ~ +80℃ |

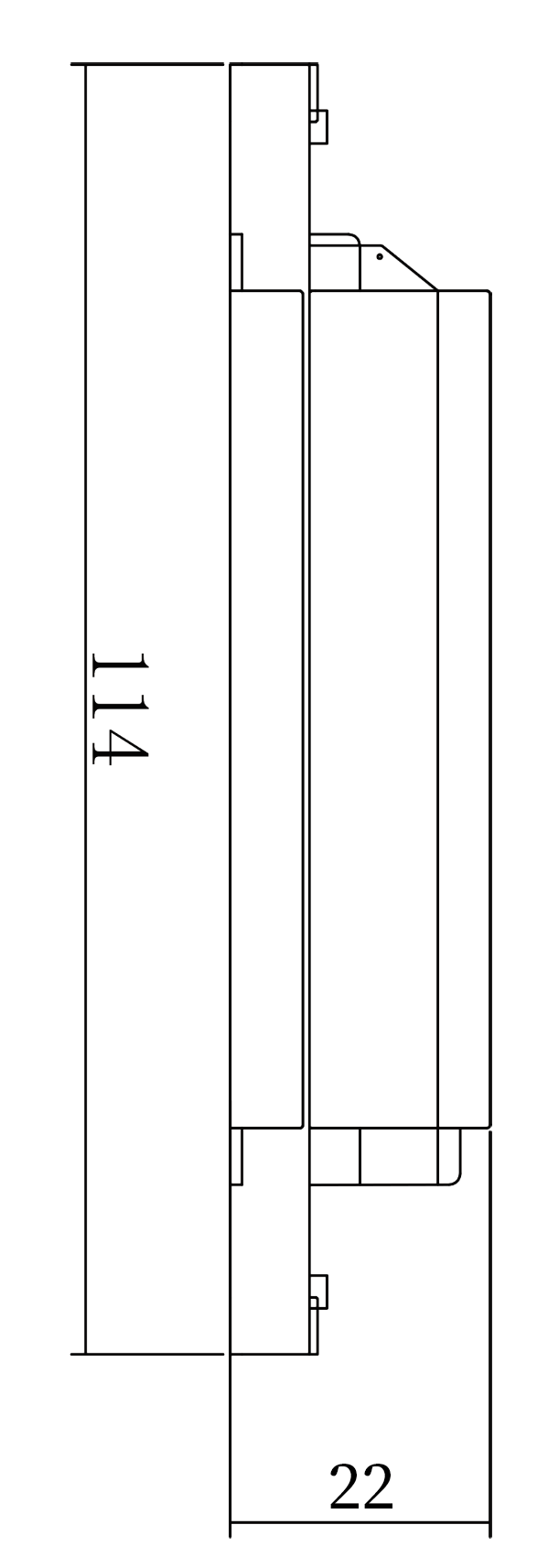

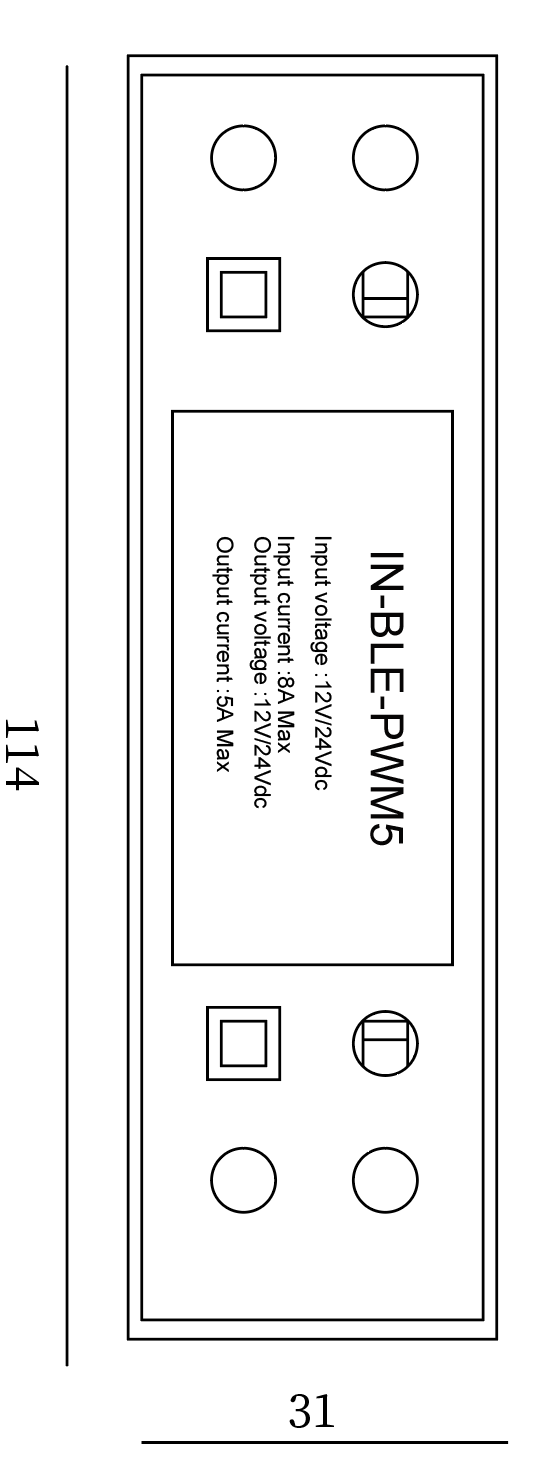

| Dimensions | 114*31*22mm |
| Weight | 48.2 g |
