Taitong Bluetooth LED Strip Controller
A Bluetooth LED strip controller (PWM5 high-power version) for 12/24V low-voltage constant-voltage strips. It switches and adjusts brightness and colour temperature on single-white, dual-white, RGB, RGBW and RGBCW strips, and adds brightness levels, fade times, warm-white blending and circadian schedules. With its built-in Bluetooth mesh protocol it forms a local network with no gateway or host. The app allows in-depth brightness and colour-temperature tuning, and a latitude/longitude algorithm adjusts the lighting automatically with location and time of day.
Specifications
| Product Name | Bluetooth LED strip controller |
|---|---|
| Model | IN-BLE-PWM5-B1 |
| Features | Output: constant voltage; wireless: Bluetooth mesh; dimming range 1%–100% |
| Input Parameters | Input voltage 12/24VDC |
| Output Parameters | Output 12/24VDC; 12V: 12VDC, 12A, 144W max; 24V: 24VDC, 12A, 288W max; … see the manufacturer datasheet for the full comparison table. |
| Environment | Humidity 20%–95%; storage -20℃ to 60℃ / 10%–95% RH |
| Protection Features | Cuts the downstream output automatically on short-circuit or overload |
| Expected Lifetime | 30,000 hours @ tc=40℃ |

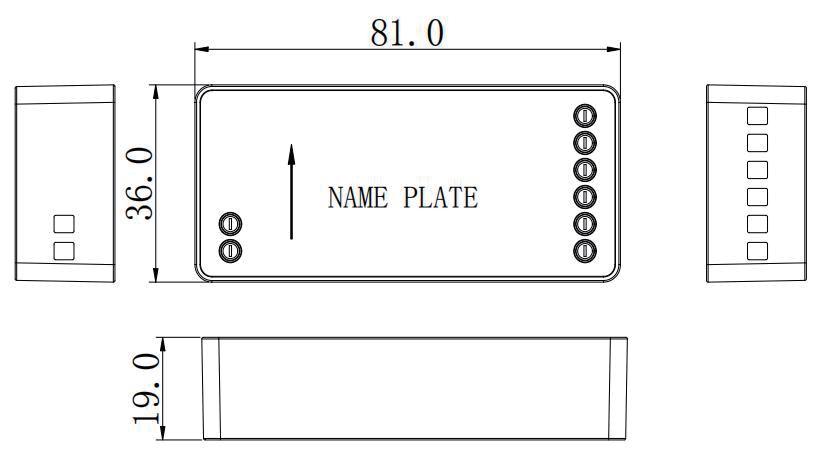

| Dimensions | 81*36*19mm |
