Taitong Bluetooth-to-RS485 Converter
A Bluetooth-to-RS485 module (IN-BLE-485-C) that needs no gateway and is quick to install. It connects up to eight curtain motors of the same brand and suits a range of blind types. Network setup and parameter configuration are done in the app, giving curtain automation a stable communication link.
Specifications
| Product Name | Bluetooth-to-RS485 |
|---|---|
| Model | IN-BLE-485-C |
| Power Supply | 5–24V DC (12V standard) |
| Device Power Consumption | 0.3W max (excluding load) |
| Protocol | RS-485 protocol output |
| Operating Temperature | -35'C-85°C |
| Operating Humidity | 5% to 85%, non-condensing |
| Communication & Control | BLE 5.0 wireless, long range supported |

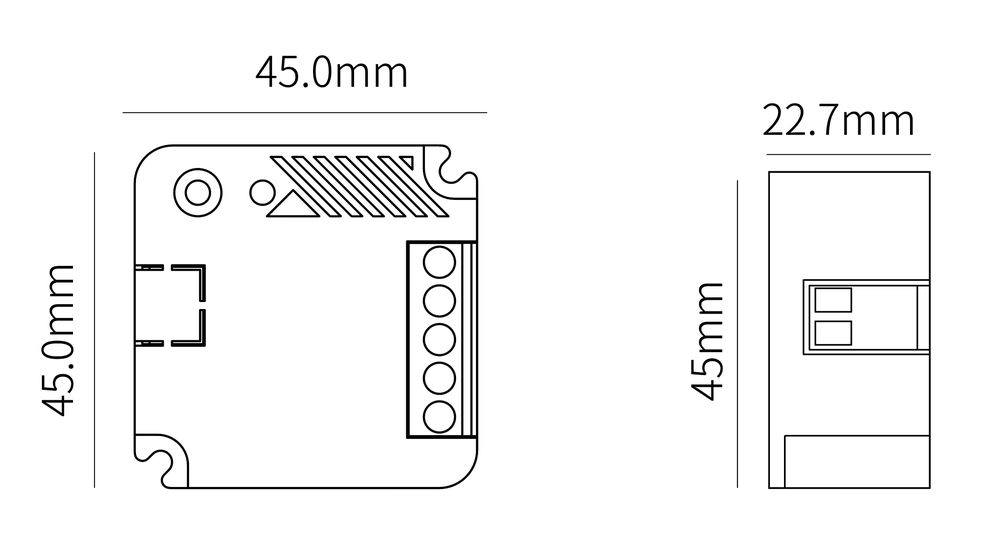

| Dimensions | 45*45*22.7mm |
| Waterproof Rating | IP67 |
