Taitong 4-Channel Dry-Contact Input Module

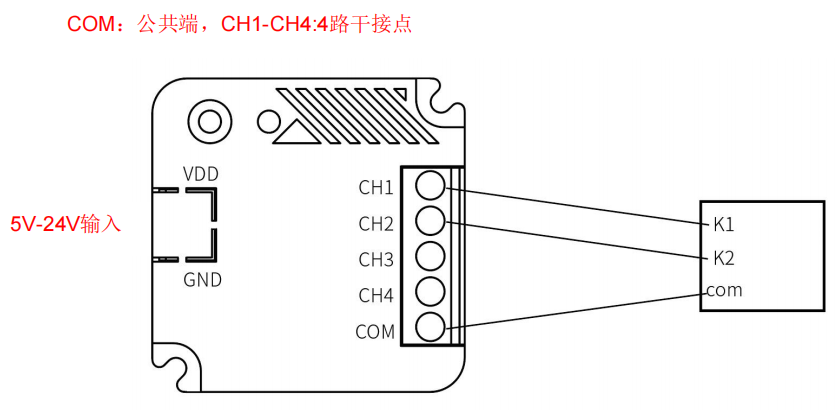

IN-BLE-4DI-A provides four dry-contact input channels. It reads dry-contact signals so that third-party equipment can be used together with the other Bluetooth devices in the system.
Specifications
| Product Name | 4-channel dry-contact input module |
|---|---|
| Model | IN-BLE-4DI-A |
| Power Supply | 5–24V DC (12V standard) |
| Device Power Consumption | 0.5W max (excluding load) |
| Digital Input Signal | 4-channel |
| Key Type | Rocker panel or momentary panel |
| Operating Temperature | 0˚ C – 40˚ C |
| Operating Humidity | 5% to 95%, non-condensing |

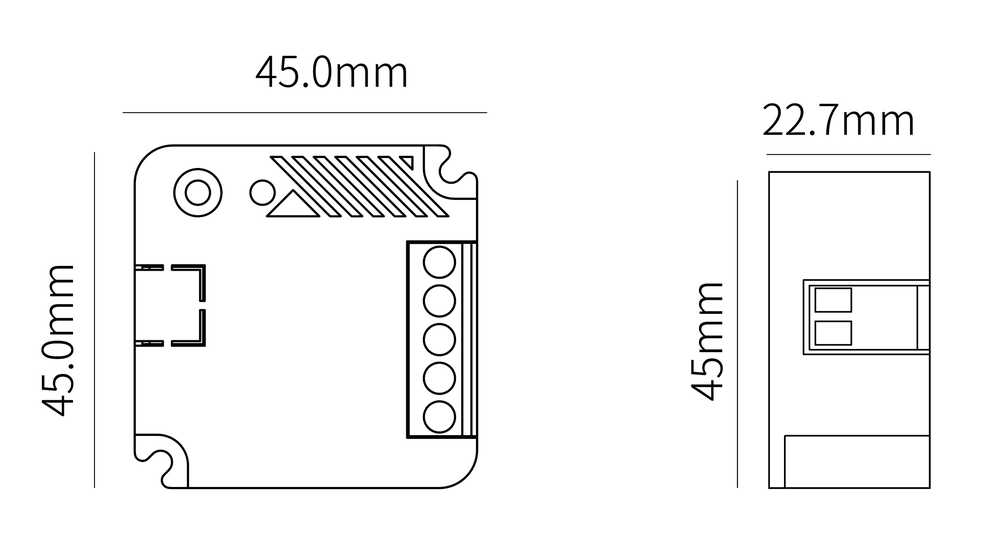

| Dimensions | 45*45*22.7mm |
