Taitong 4-Channel Dry-Contact Relay Controller

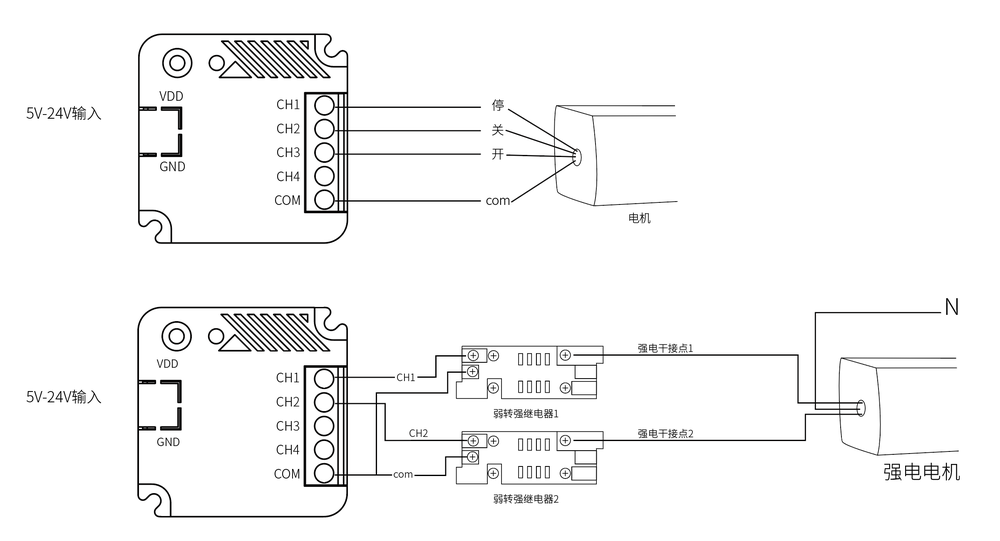

A wireless relay providing four dry-contact outputs to control devices with dry-contact interfaces, including motorised curtains and projector screens. Highly integrated, and works together with the other Bluetooth devices in the system.
Specifications
| Product Name | 4-channel dry-contact relay controller |
|---|---|
| Model | IN-BLE-4DO-R |
| Power Supply | 5–24V DC (12V standard) |
| Device Power Consumption | 1W max (excluding load) |
| Maximum Load | 0.5A@50V, 1A@30V |
| Operating Temperature | 0˚ C – 40˚ C |
| Operating Humidity | 5% to 95%, non-condensing |

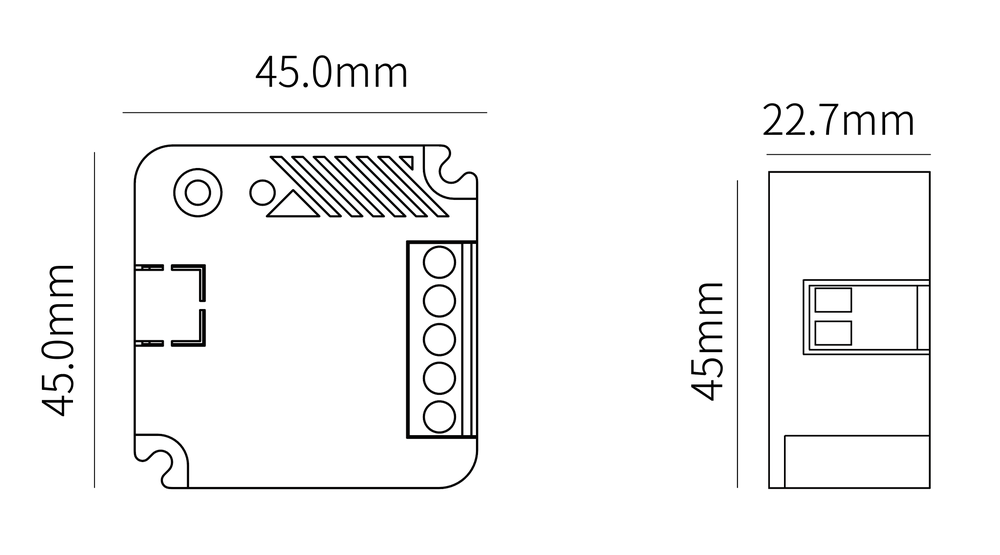

| Dimensions | 45*45*22.7mm |
