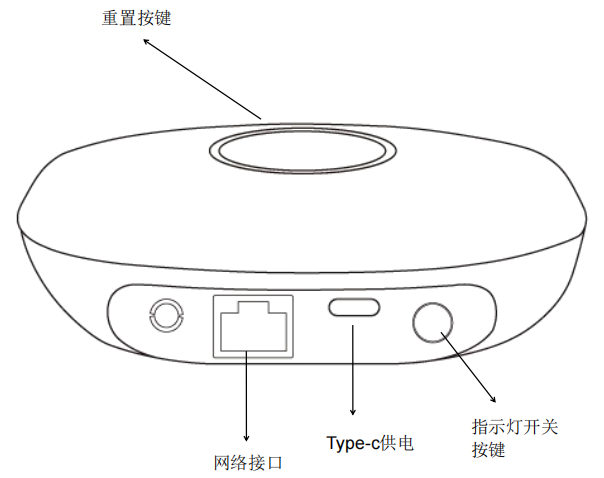

Taitong Data Communication Gateway
A device for the Bluetooth mesh that extends signal coverage and coordinates complex scenes with cloud data. It handles advanced dynamic scenes, circadian scheduling, remote access, voice-platform integration, integration with smart home platforms including Apple Home, air-conditioning management, OTA updates for Bluetooth sub-devices, third-party background-music integration and logging. The device acts as a Bluetooth node, communicating with the other nodes over Bluetooth, and requires its own power supply and network connection — PoE is not supported.
Specifications
| Product Name | Data communication gateway |
|---|---|
| Model | IN-BLE-Gateway |
| Operating Voltage | 5V(2000ma) |
| Wireless Connection | BLE 2,4~...2,483 Ghz |
| Operating Current Range | 0–5A (total output) |
| Communication Range | 8-16M |
| Operating Temperature Range | -20 to +45℃ (-4 to +113°F) |
| Operating Humidity | 0~...80%, non-cond |
| Interface | Power: 5V 2000mA; network: RJ45; Wi-Fi: 2.4GHz and 5GHz only |
